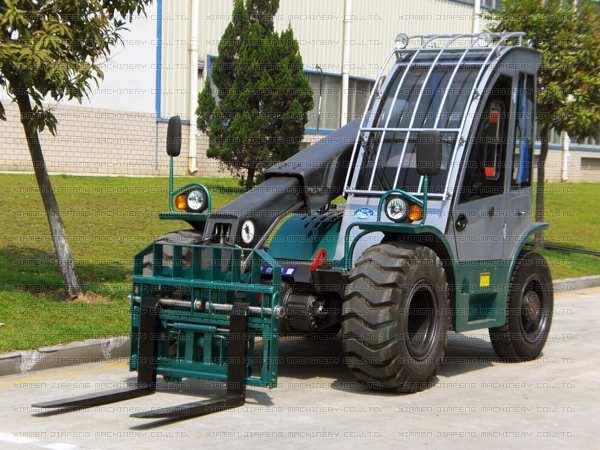

SCZ25-4型伸縮臂叉裝機

( Telescopic Forklift Loader)



[ 產品簡介 Product Introduction ]



SCZ25-4型伸縮臂叉裝機,底盤采用四輪驅動,剛性懸掛;液力機械傳動,液壓動力轉向和液壓制動,后輪轉向。作業裝置為兩節四邊形伸縮式工作臂,標準車型配有貨叉側移裝置。該車可用于集裝箱內托盤集裝物資的掏箱、裝箱作業和對各類集裝物資進行裝卸、碼垛和短途搬運作業。


    該車適合在多種工作環境下作業,是工礦、企業、建筑、建材、港口、市政工程等行業裝卸、起重、運輸的理想設備。該車還備有鏟斗、吊鉤、吊臂等各種不同屬具供用戶選擇、安裝使用。其裝卸高度及越野性能是普通叉車所無法比擬的。



SCZ25-4 Type Telescopic Forklift Loader, which uses the four-wheel drive, the rigid suspension; The fluid mechanical drive, the hydraulic power changes with the hydraulic brake, the rear wheel changes. The operation installment is two quadrangle telescopic handle, has fork which fix could be side to move. Could use to pull in & out the box on the container, also for loading and unloading, Cargo stowing and short-haul handing.



This type could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining, Enterprise, Construction, Materials, Harbor, Municipal Engineering. Also has the scoop, the hook ,the suspend arm and so on each kind is differently for the customer’s choice to install. Its loading and unloading and the cross-country performance is highly the universal forklift is unable to compare.



[ 主要技術參數 Specifications ]



額定起重量

Rated load

2500kg

最大外伸距時舉升重量

Lifting load (Max.extend length)

1000kg

基本臂最大作業高度

Max.lifting height of basic arm

4300mm

全伸臂最大作業高度

Max.lifting height of full extend arm

6000mm

最大行駛速度

Max.traveling speed

28km/h

最小離地間隙

Min.ground clearance

310mm

最小轉彎直徑(外輪中心)

Min.turning Diameter (center of outer wheel)

12500mm

爬坡度

Grade ability

30%

自重

Deadweight

7100kg

整機外形尺寸(長×寬×高)

Overall dimension (L×W×H)

5560mm×2270mm×2560mm

發動機(東風康明斯)

Engine (Dongfeng Cummins)

型號

Type

4BT3.9-C80

額定功率

Rated power

60kw

標定轉速

Rated speed

2000r/min

輪胎

Tyre

前輪

Front wheel

16/70-20

后輪

Rear wheel

8.25-20-14



注:由于技術改進,該數據可能與產品不符,如有誤則以產品為準。

Note:The content and performance will be revised and the products will be improve without notice.
